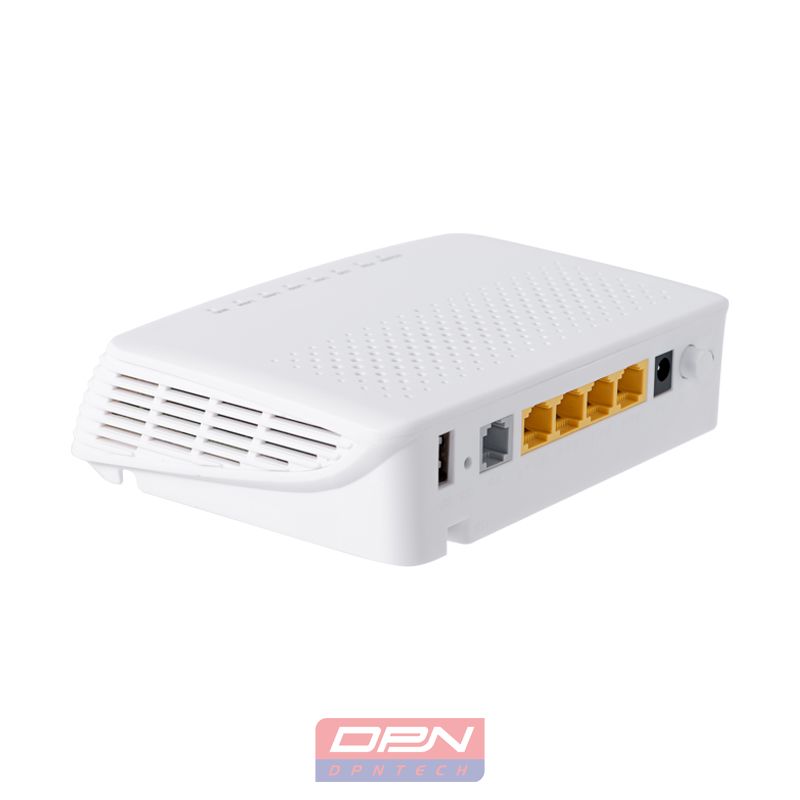

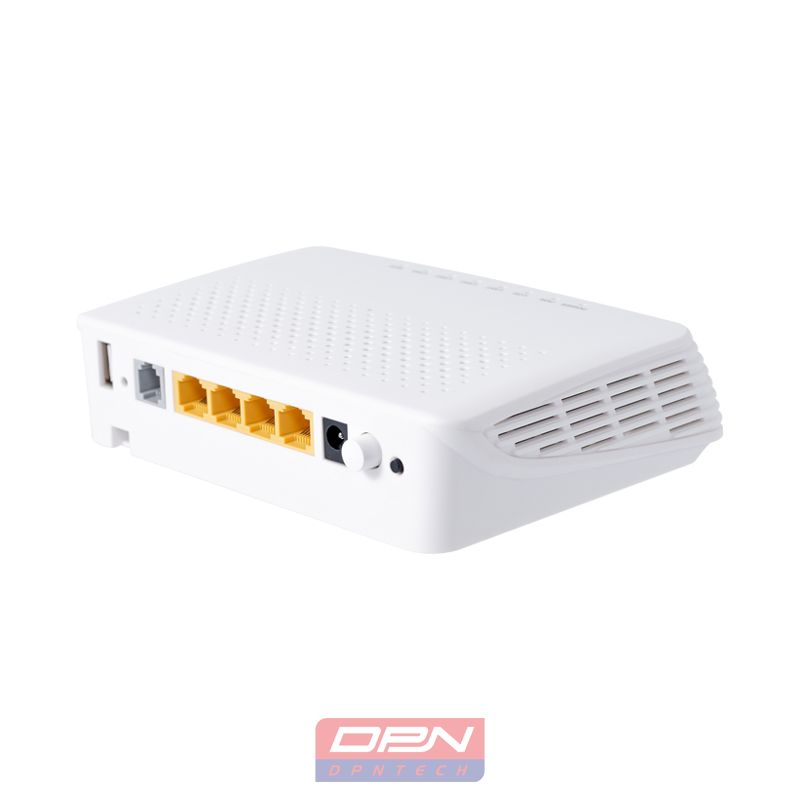

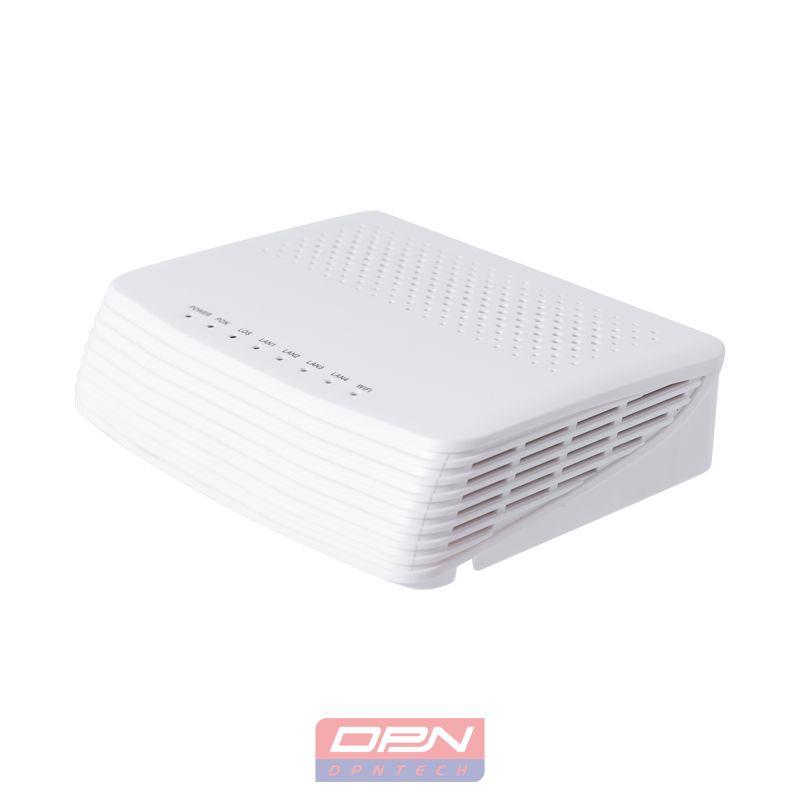

XPON 1G3F+WIFI +POTS+USB ONU Hidden antenna ONU
Overview
l 1G3F+WIFI+POTs+USB is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G3F+WIFI+POTs+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G3F+WIFI+POTs+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G3F+WIFI+POTs+USB are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l 1G3F+WIFI+POTs+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards and IEEE802.3ah.
l Support SIP Protocol for VoIP Service
l Integrated line testing compliant with GR-909 on POTS
l Support 802.11n WIFI (2x2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and WEB Management
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL...)
l Supports OAM/OMCI management.
Specification
Technical Item | Details |
PON interface | 1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-31dBm Transmitting optical power: 0.5~+5dBm Transmission distance: 20KM |
LAN interface | 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
USB Interface | Stamdard USB2.0 |
WLAN Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz Support 2*2MIMO, 5dBi external antenna, rate up to 300Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
POTS Port | RJ11 Max 1km distance Balanced Ring, 50V RMS |
LED | 8 LEDs to indicate the status of POWER, WIFI, PON,LOS, LAN1~LAN2, FXS, USB |
Push-Button | 5 button for Function of Power on/off, Reset,WLAN, WPS,Light |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.3kg |

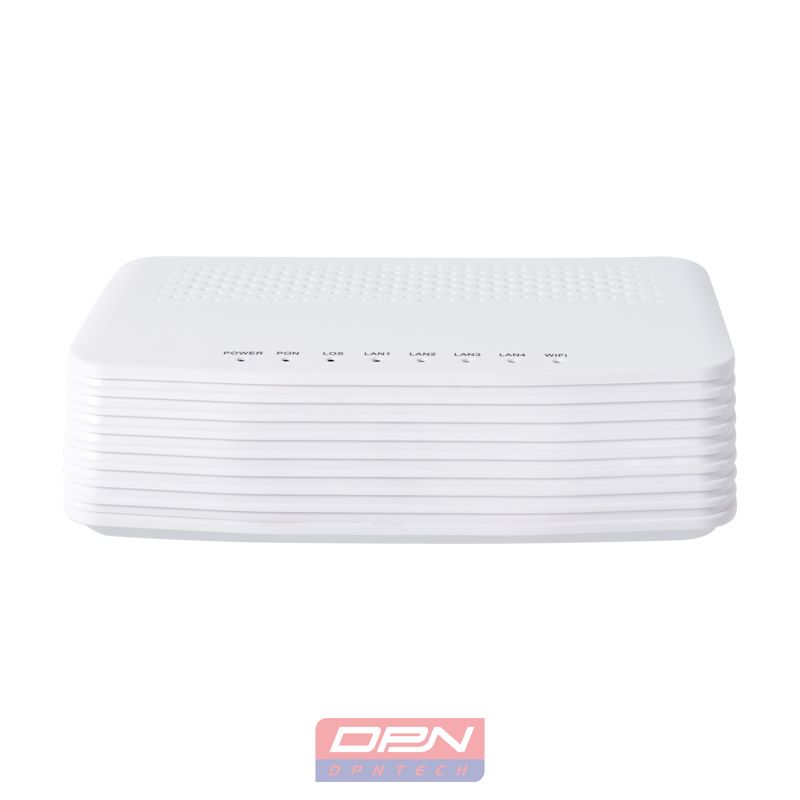

Panel lights and Introduction
Pilot Lamp | Status | Description |
2.4G | On | WIFI up |
Blink | WIFI is sending or/and receiving data (ACT). | |
Off | WIFI down | |
USB | On | Access device detected. |
Off | No access device detected. | |
PWR | On | The device is powered up. |
Off | The device is powered down. | |
LOS | Blink | The device doses not receive optical signals or with low signals. |
Off | The device has received optical signal. | |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. | |
Off | The device registration is incorrect. | |
LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). | |
Off | Port (LANx) connection exception or not connected. | |
FXS | On | Telephone has registered to the SIP Server. |
Blink | Telephone has registered and data transmission (ACT). | |
Off | Telephone registration is incorrect. |
