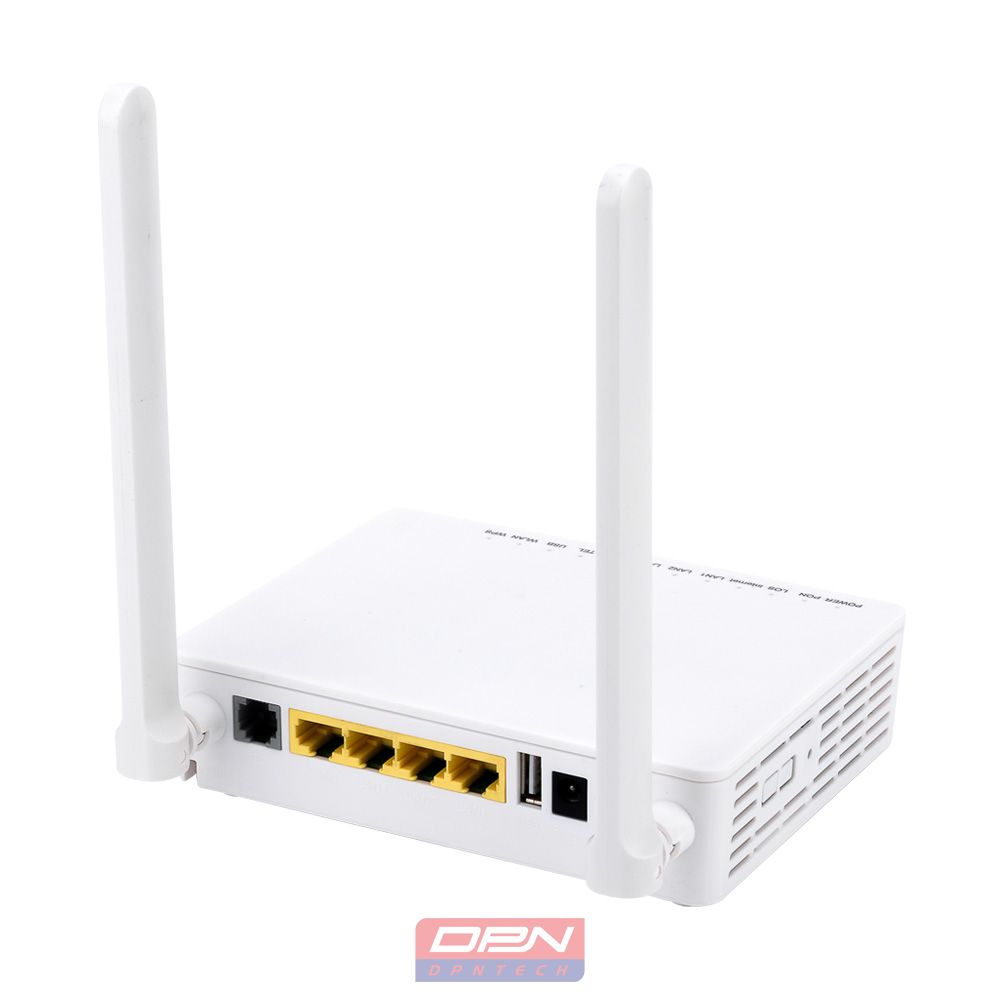

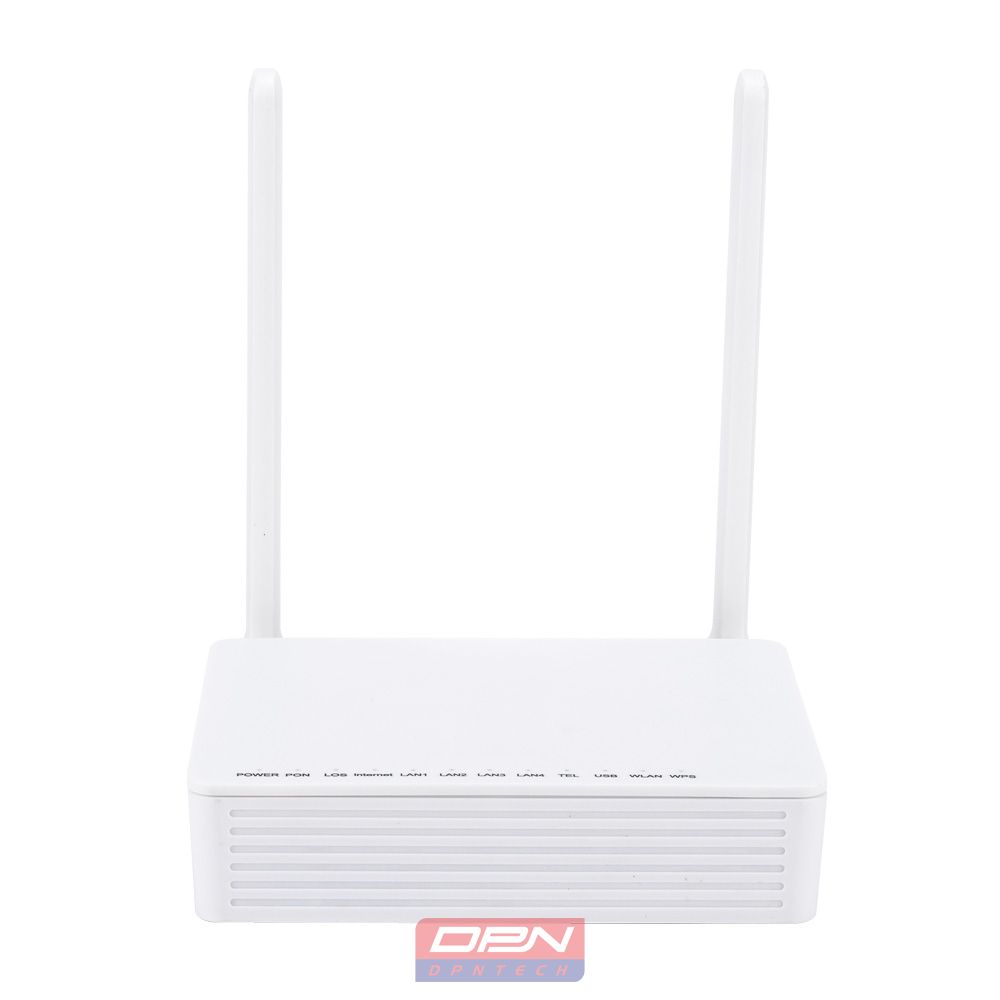

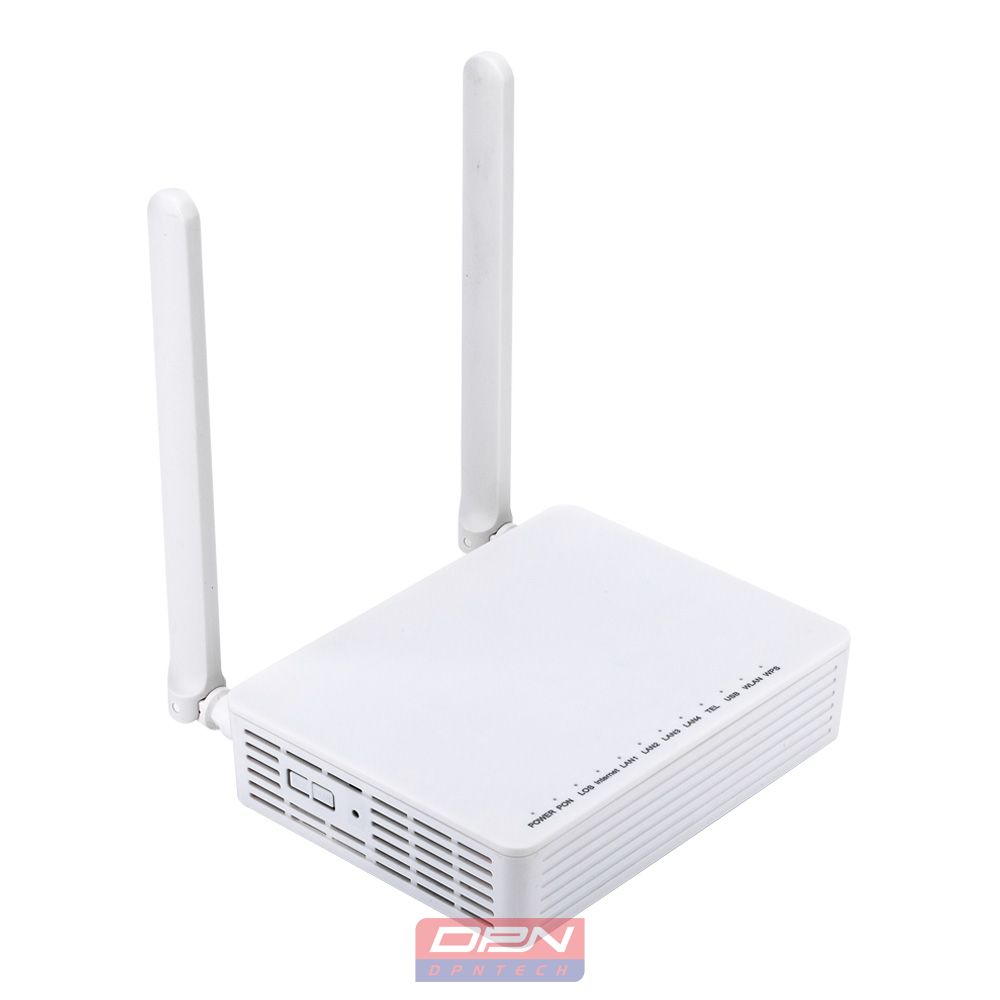

XPON 1G3F 2VOIP ONU
Overview
l 1G3F+WIFI+VOIP+USB is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G3F+WIFI+VOIP+USB are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G3F+WIFI+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
l 1G3F+WIFI+VOIP+USB are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l 1G3F+WIFI+VOIP+USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards and IEEE802.3ah.
l Support SIP Protocol for VoIP Service.
l Integrated line testing compliant with GR-909 on VOIP.
l Support 802.11n WIFI (2x2 MIMO) function.
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
l Support port mode of VLAN configuration.
l Support LAN IP and DHCP Server configuration.
l Support TR069 Remote Configuration and WEB Management.
l Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
l Support IPv4/IPv6 dual stack.
l Support IGMP transparent/snooping/proxy.
l In compliant with IEEE802.3ah standard.
l Compatible with popular OLT(HW, ZTE)
Specification
Technical Item | Details |
PON Interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN Interface | 1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
USB Interface | The standards USB2.0 |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
VOIP Port | RJ11 Max 1km distance Balanced Ring, 50V RMS |
LED | 12 LED, For Status of Internet、WPS、PWR、LOS、PON、LAN1~LAN4、WLAN、 TEL、USB |
Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.4kg |
