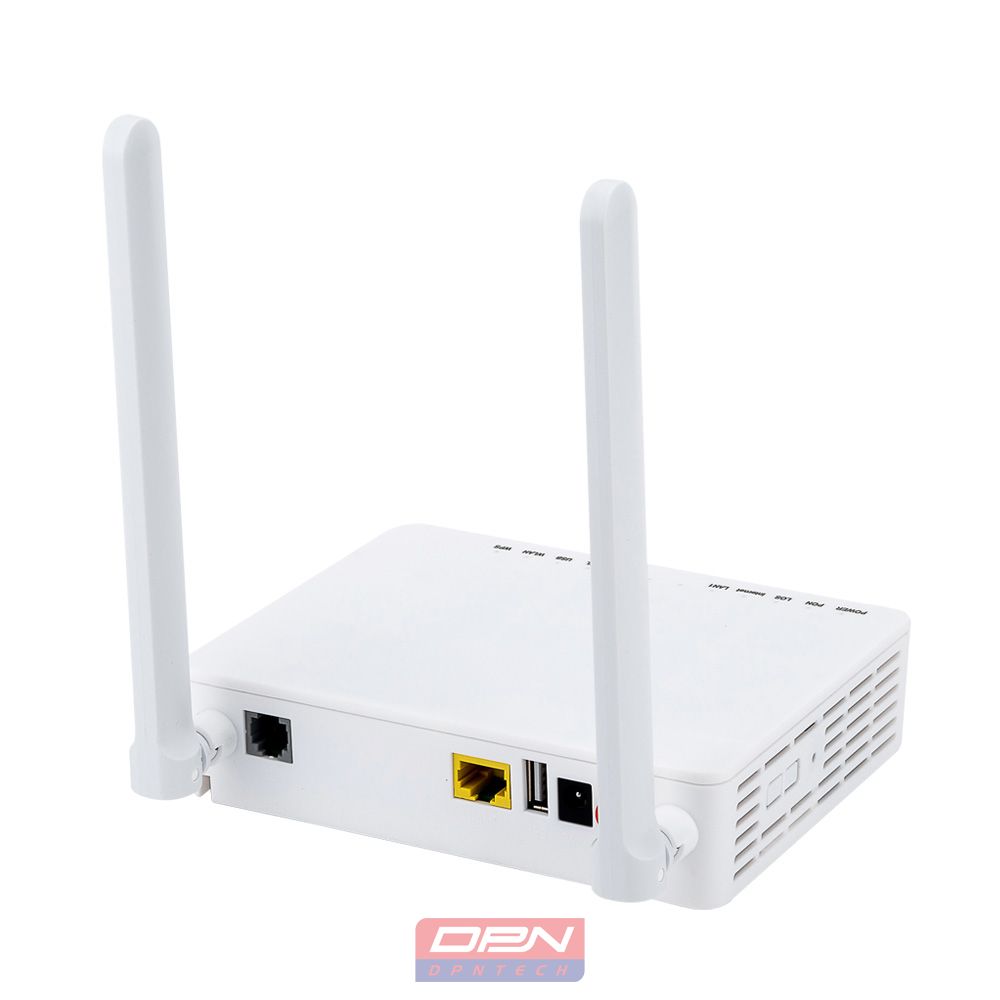

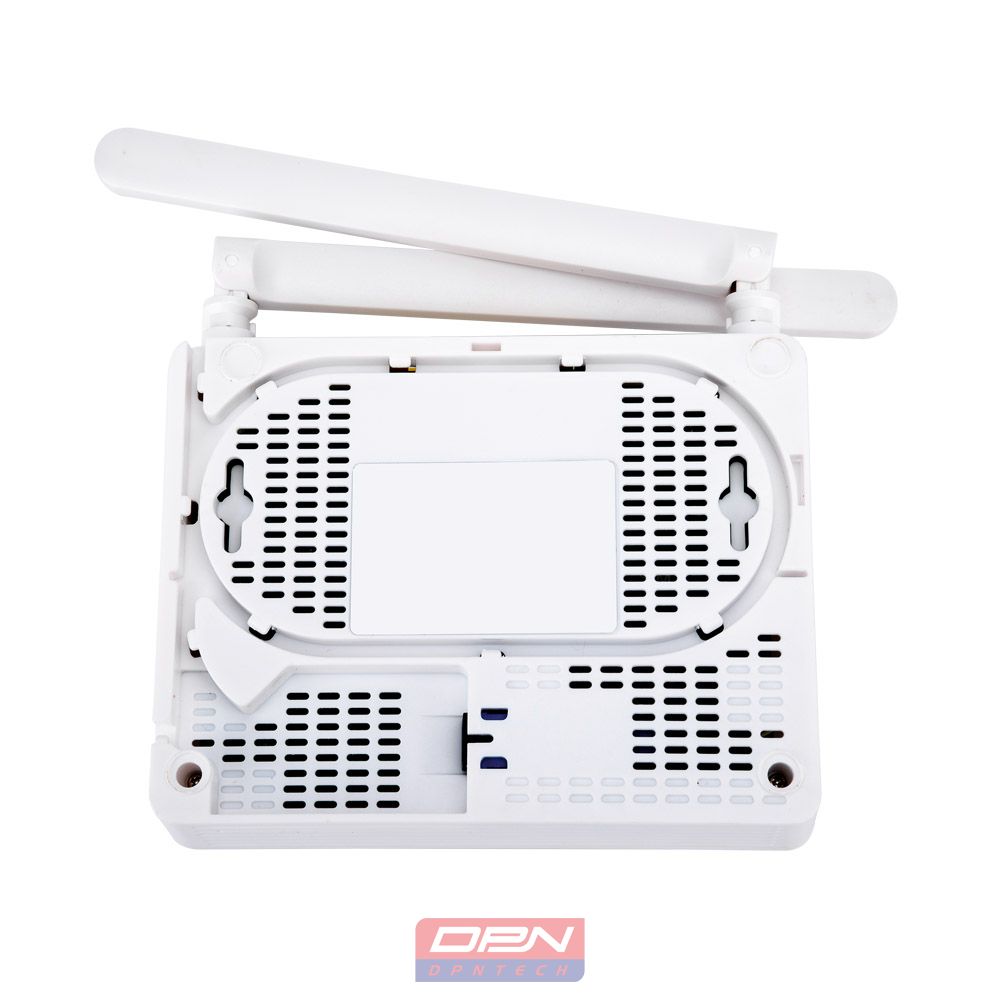

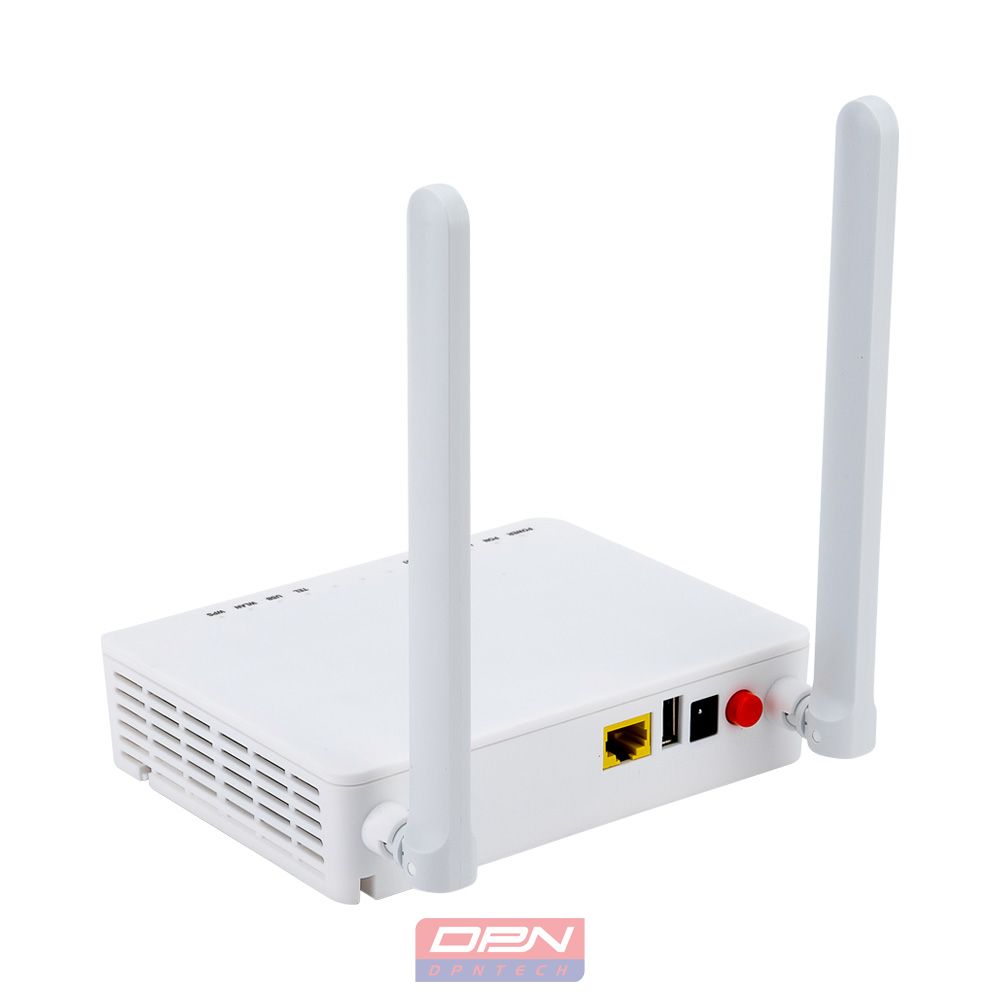

Single Frequency 1GE+WIFI+VOIP+USB ONU BN8403M
Overview
l 1GE+WIFI+VOIP+USB is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
l 1GE+WIFI+VOIP+USB is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1GE+WIFI+VOIP+USB adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1GE+WIFI+VOIP+USB is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l 1GE+WIFI+VOIP+USB is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports SFU and HGU of EPON CTC 3.0 standard
l Comply with GPON G.984/G.988 and IEEE802.3ah standards.
l Support SIP Protocol for VoIP Service.
l Support 802.11n WIFI (2x2 MIMO) function.
l Support SIP Protocol for VoIP Service.
l Integrated line testing compliant with GR-909 on VOIP.
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
l Support port mode of vlan configuration.
l Support LAN IP and DHCP Server configuration.
l Support TR069 Remote Configuration and maintenance.
l Support Route PPPoE/DHCP/Static IP and Bridge mixed mode.
l Support IPv4/IPv6 dual stack.
l Support IGMP transparent/snooping/proxy.
l Compatible with popular OLTs(HW, ZTE)
l Supports OAM/OMCI management.
Specification
Technical Item | Details |
Pon interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm single mode，SC/UPC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
LAN interface | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
VOIP Port | 1×VOIP RJ11 Connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |

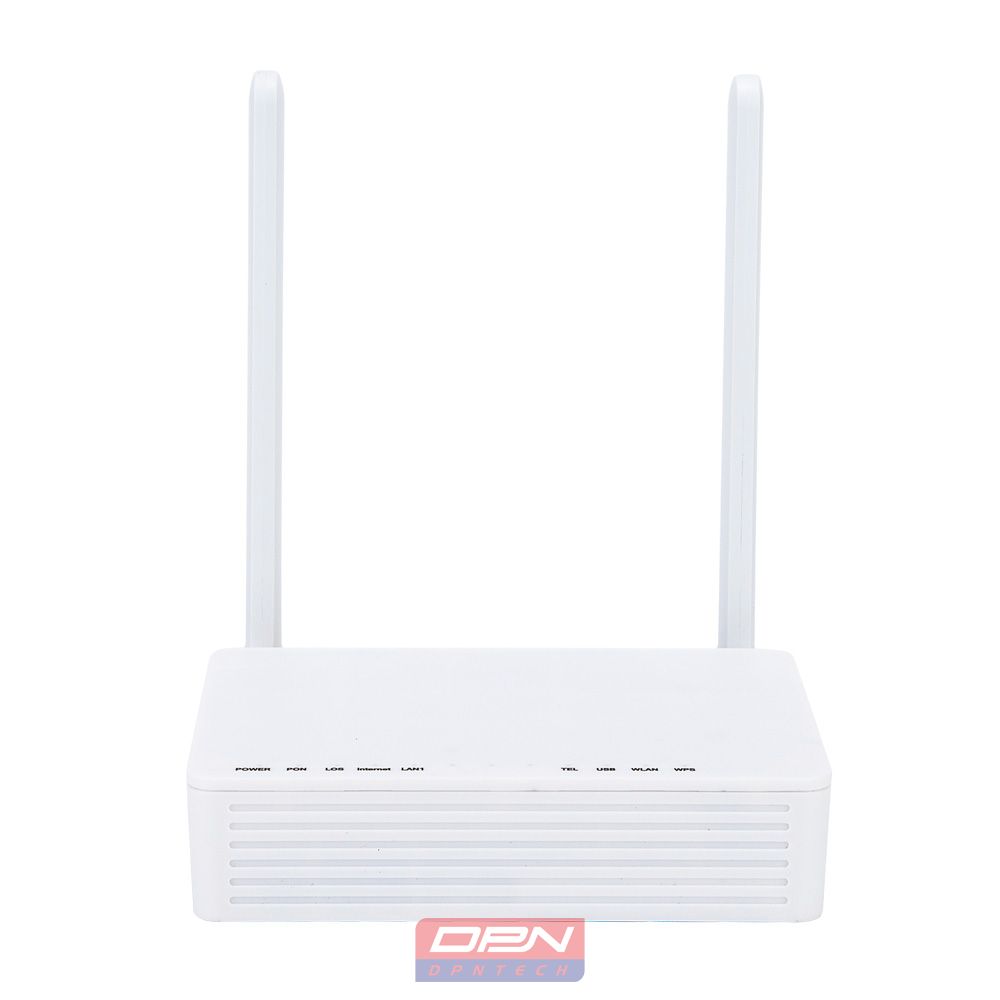

LED | 9 LED, For Status of POWER, LOS, PON, LAN1,Internet,TEL , WLAN, WPS,USB |
Push-Button | 2, for Function of Power on/off, Reset |
Operating condition | Temperature : 0℃～50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |
