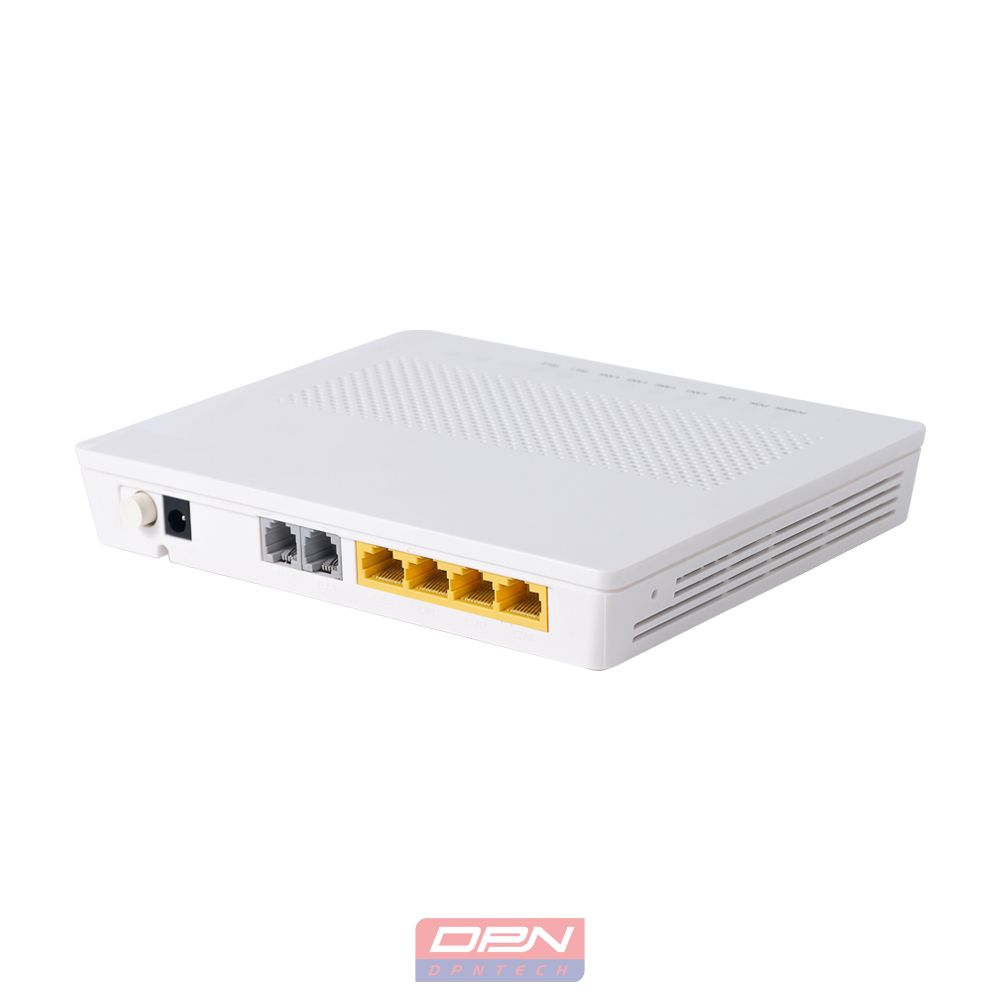

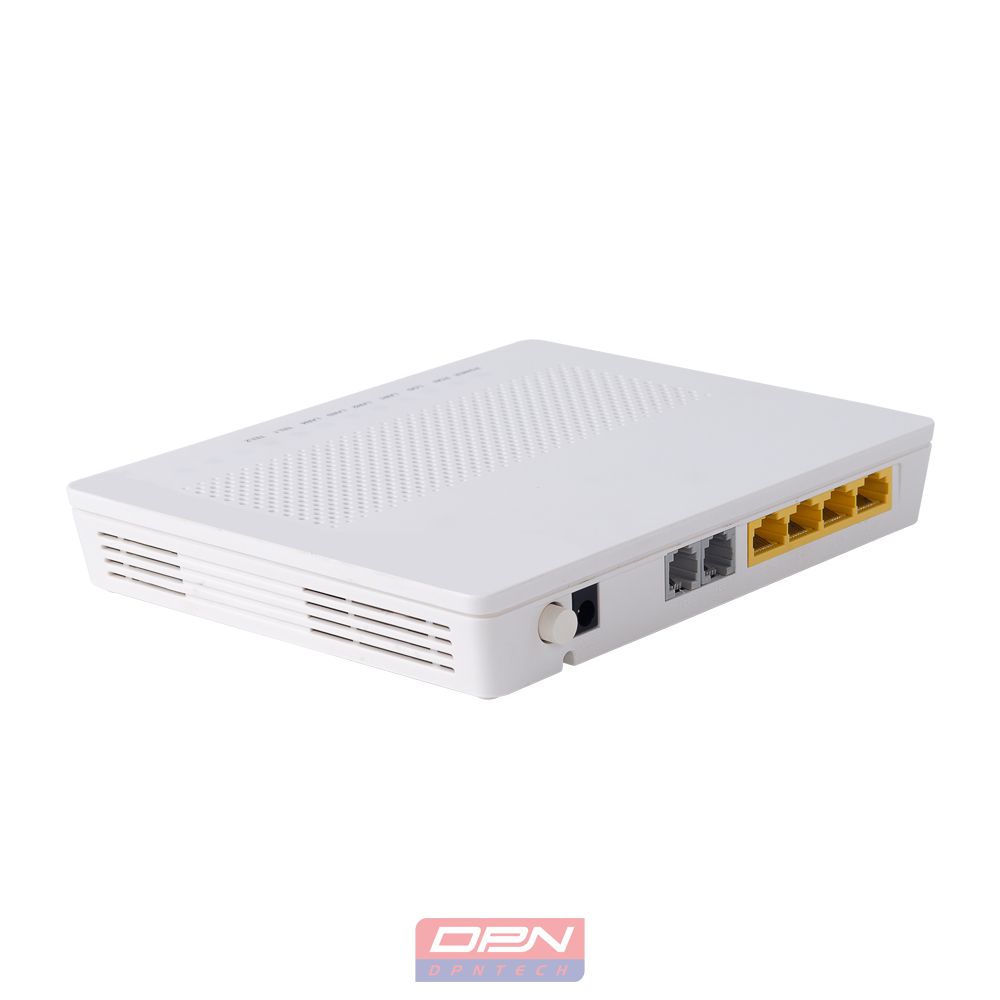

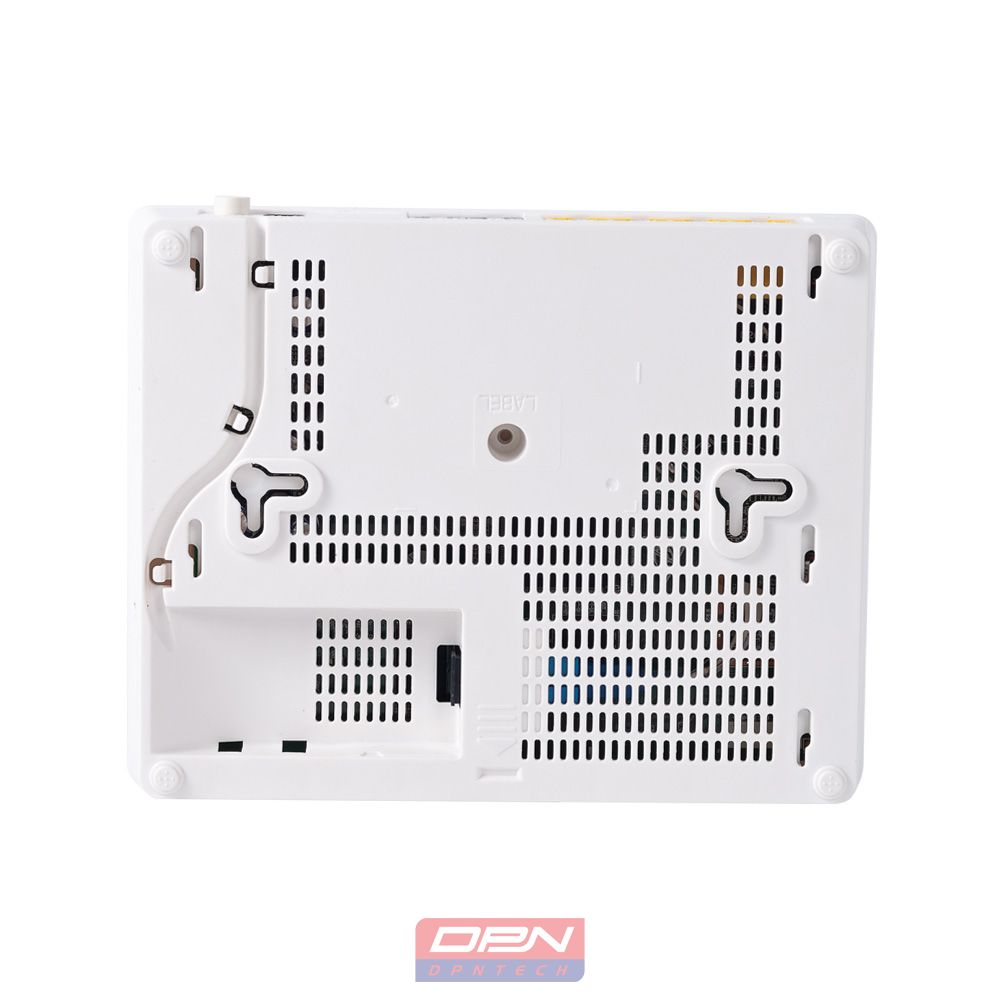

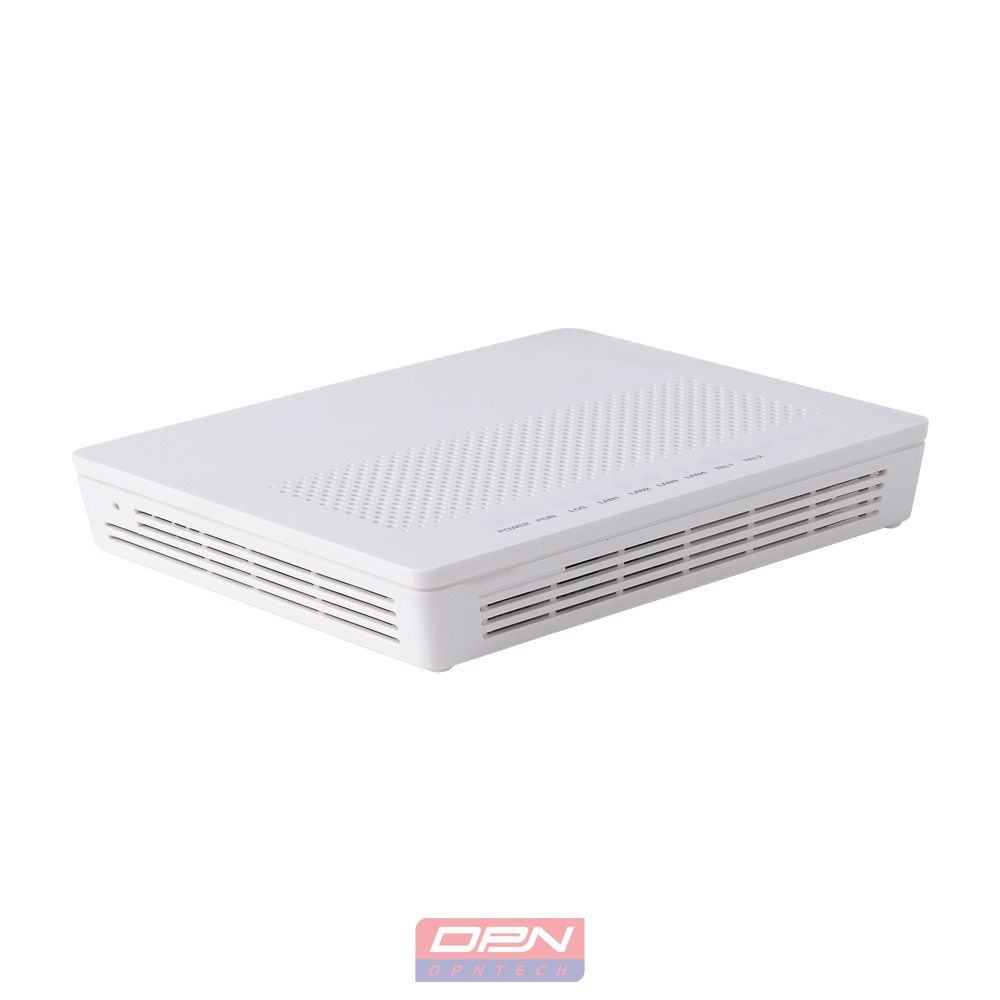

XPON 1G3F 2VOIP ONU BN8303H
Overview
l 1G3F+2VOIP ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; providing data service access for telecom-grade FTTH applications.
l 1G3F+2VOIP ONU adopts high reliability, easy management, flexible configuration, and good quality of service (QoS) guarantee.
l 1G3F+2VOIP ONU fully complies with IEEE802.3ah technical specifications and can be connected to EPON OLT.
Feature
l Support EPON mode (can access EPON OLT).
l lSupport SFU and HGU of EPON CTC 3.0 standard.
l lSupport GPON G.984/G.988 standard and IEEEE802.3AH.
l lSupport NAT, firewall functions.
l lSupport traffic and storm control, loop detection, port forwarding and loop detection.
l lSupport vlan configured port mode.
l lSupport LAN IP and DHCP server configuration.
l lSupport TR069 remote configuration and maintenance.
l lSupport routing PPPOE/DHCP/static IP and bridge mixed mode.
l lSupport IPv4/IPv6 dual stack.
l lSupport IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy.
l lCompatible with mainstream OLT (HW, ZTE, FiberHome, etc.)
Specification
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-27dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Push-Button | Reset,Power |
Operating condition | Working temperature: -5- +55℃ Working humidity:10-90%(non-condensation) |
Power Supply | DC 12V/1A |
Net Weight | <0.4kg |
