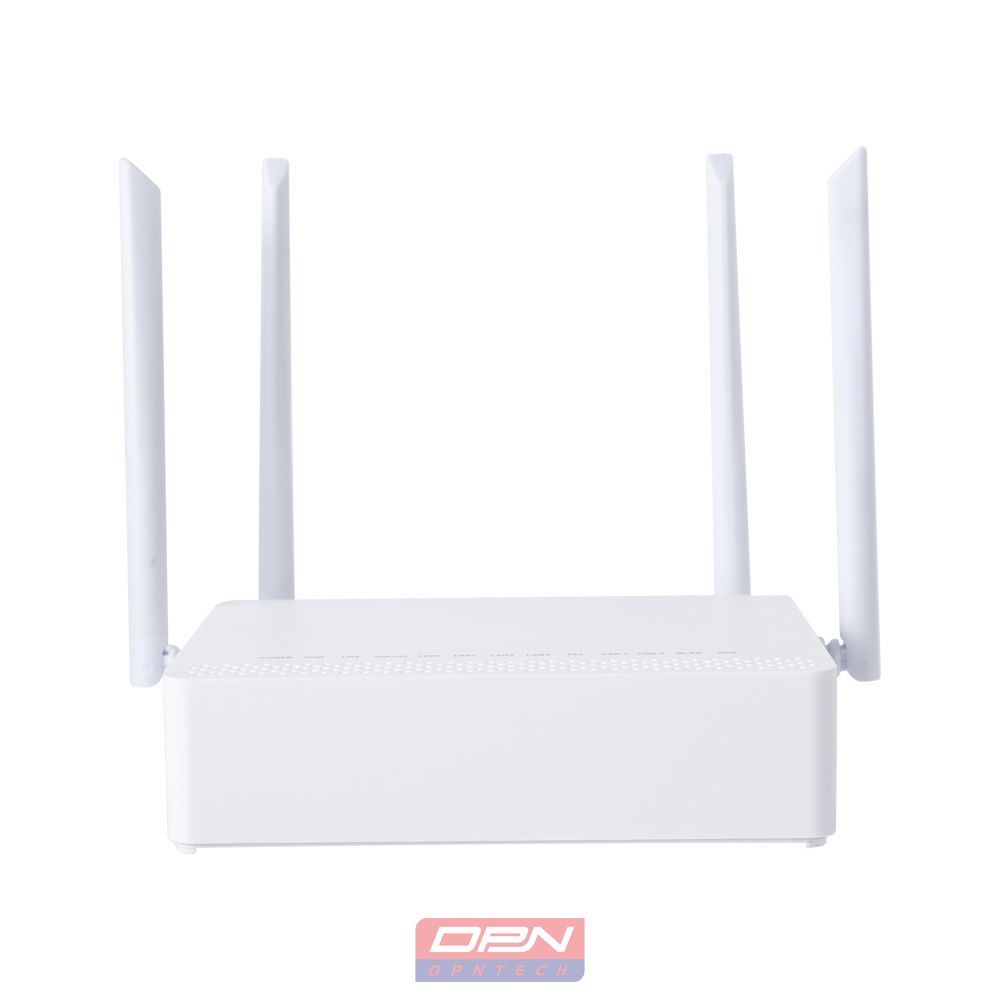

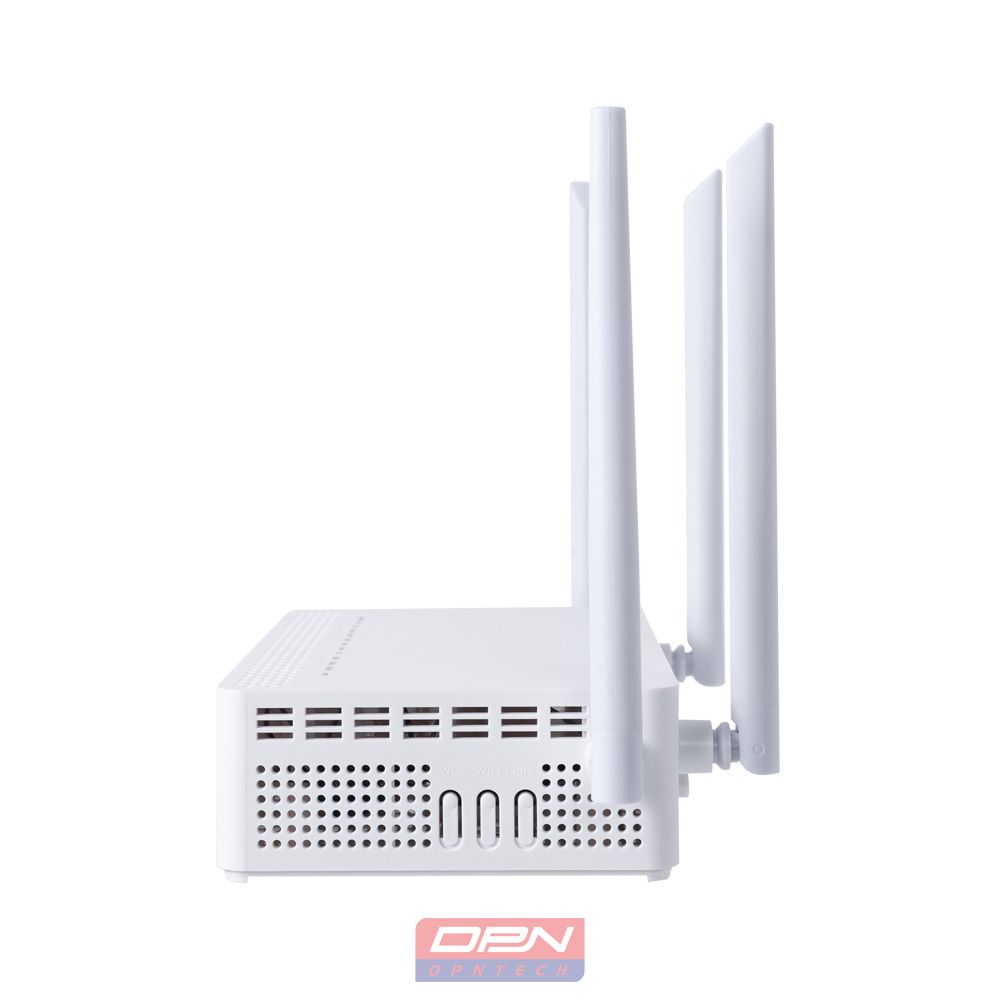

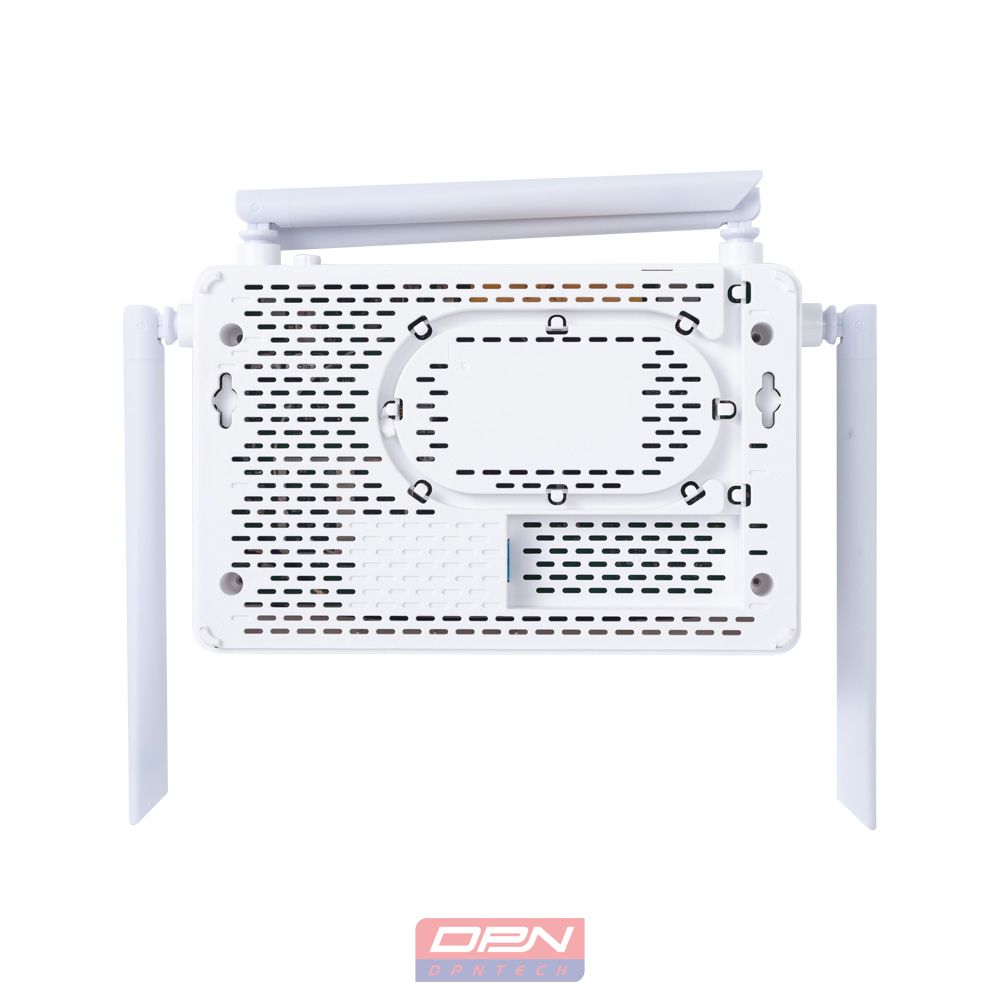

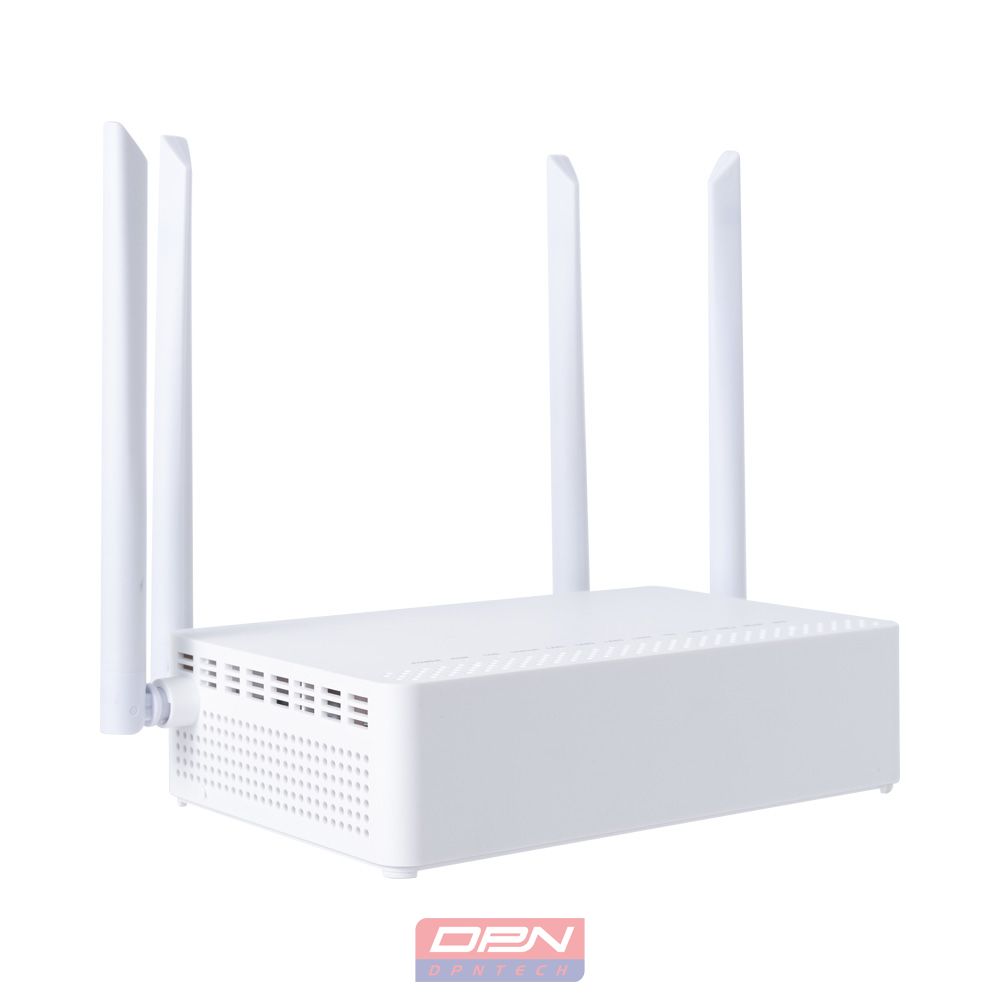

ZTE chip ONT ONU XPON 4GE+AX3000+POTs+2USB
Overview
l XPON 4G+AX3000+POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
l XPON 4G+AX3000+POTs+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
l XPON 4G+AX3000+POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.
l XPON 4G+AX3000+POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l XPON 4G+AX3000+POTs+2USB are designed by ZTE chipset ZX279128S.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Comply with GPON G.984/G.988 standard and IEEE802.3ah.
l Support SIP Protocol for VoIP Service.
l Integrated line testing compliant with GR-909 on POTS.
l Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID.
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
l Support power-off alarm function ,easy for link problem detection.
l Support port mode of VLAN configuration.
l Support LAN IP and DHCP Server configuration.
l Support TR069 Remote Configuration and WEB Management.
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
l Support IPv4/IPv6 dual stack.
l Support IGMP transparent/snooping/proxy.
l Support ACL and SNMP to configure data packet filter flexibly.
l Compatible with popular OLT(HW, ZTE, FiberHome,...),supports OAM/OMCI management.
Specification

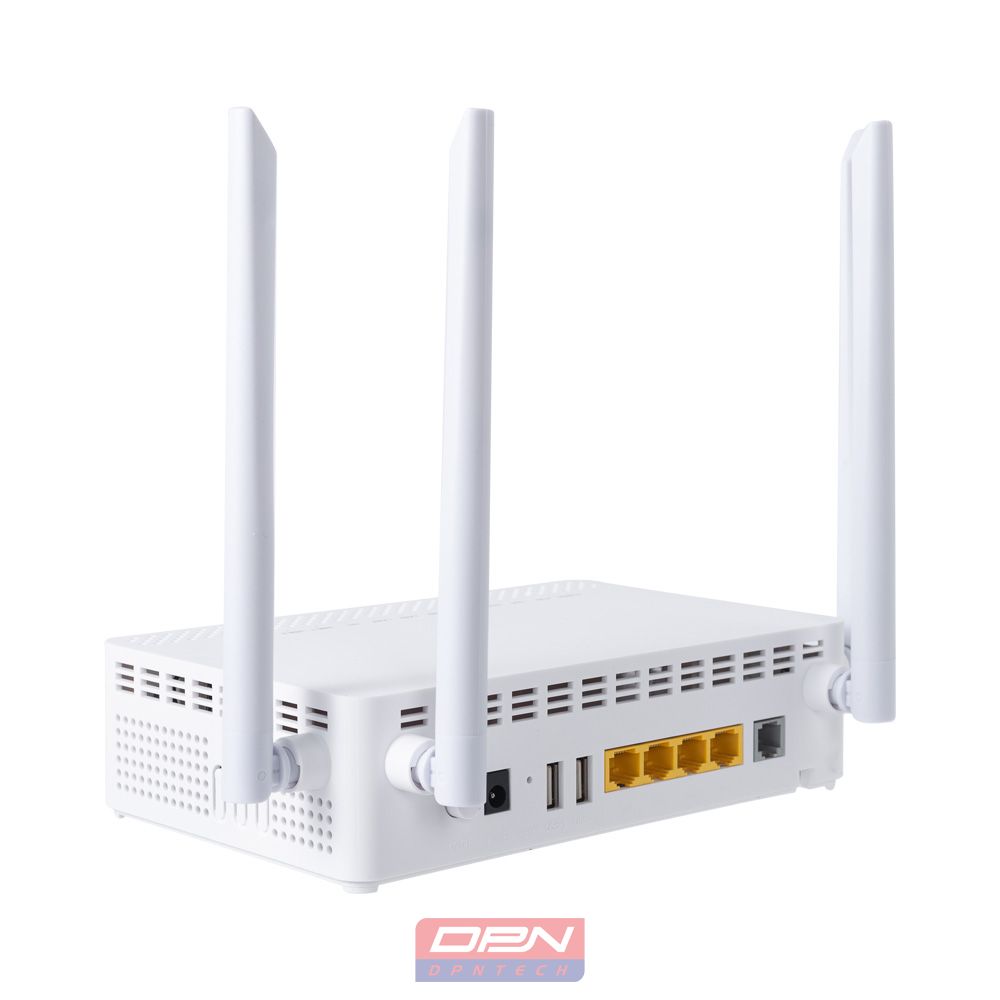

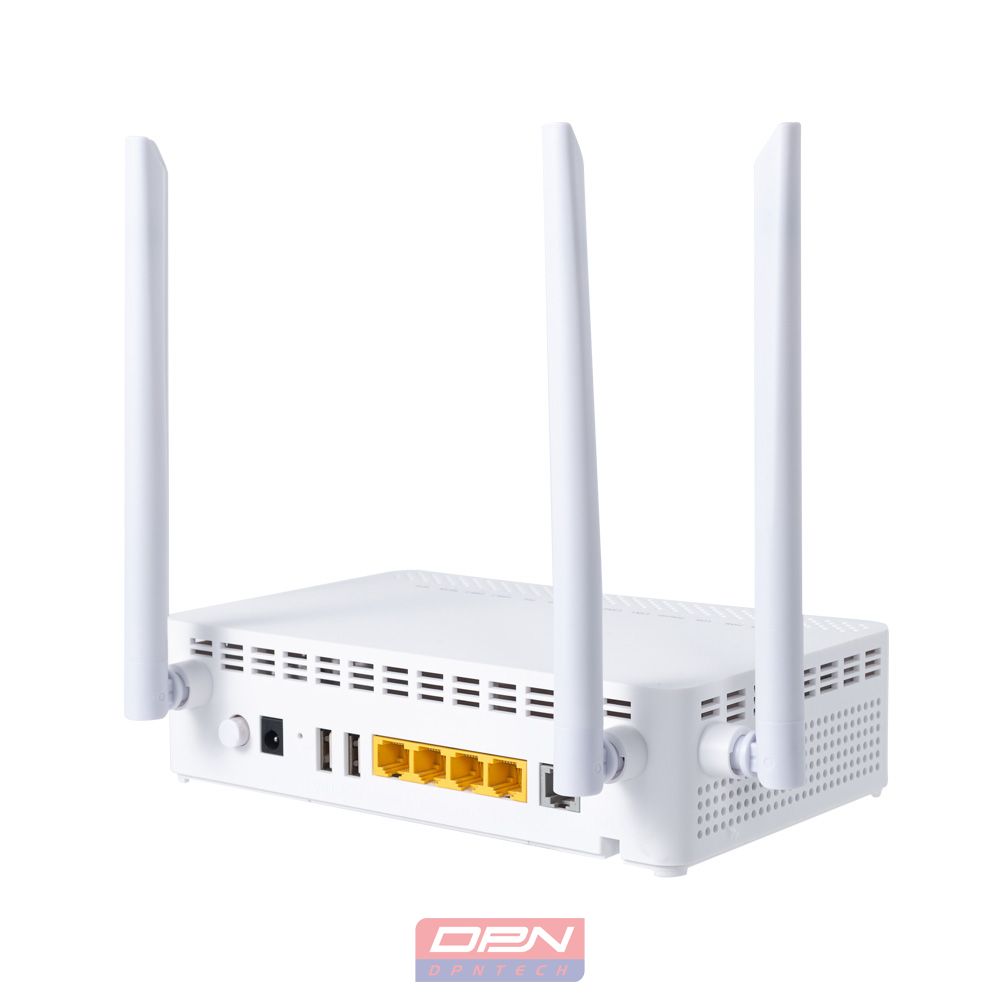

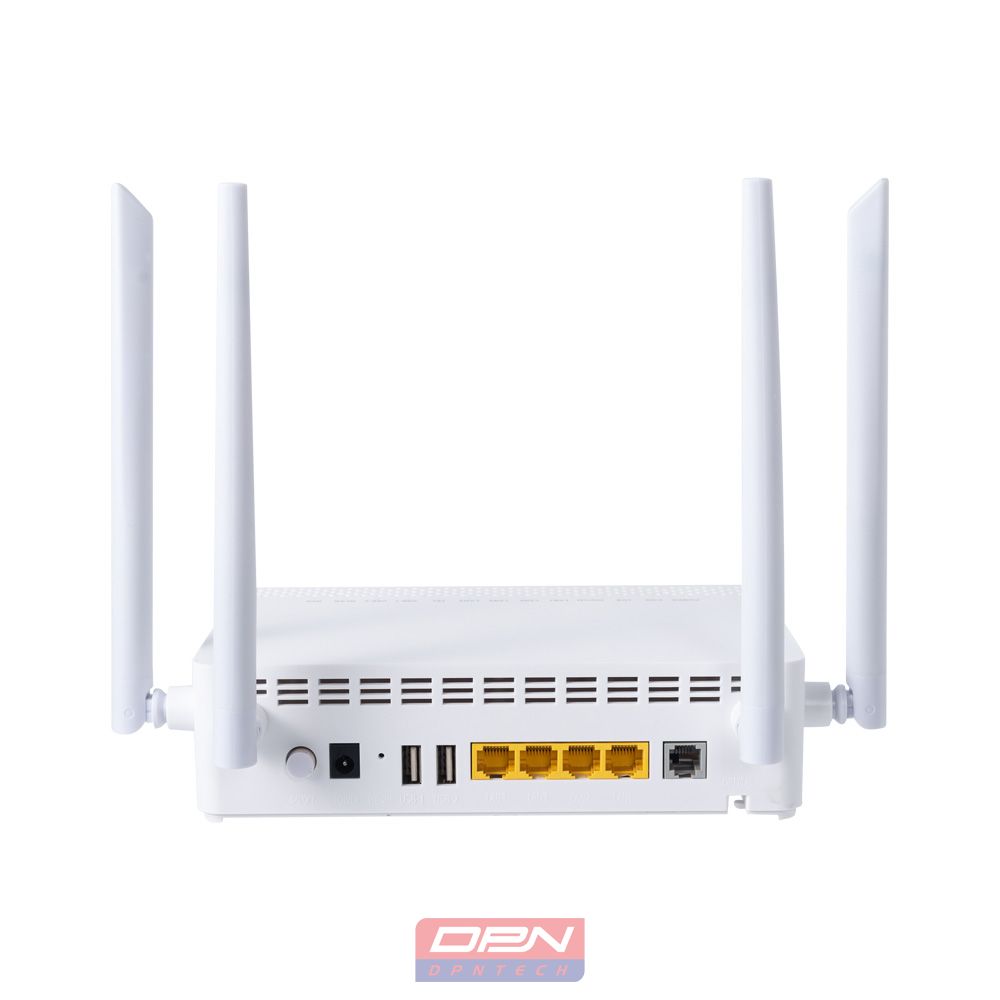

Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode ，SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
USB Interface | Stamdard USB2.0 |
WIFI Interface | Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
POTS Port | 1×POTS RJ11 Connector |
LED | 13 LED, ：PWR、LOS,PON、INTERNET 、LAN1、LAN2、LAN3、 LAN4、 POTS、USB1、USB2、WLAN 、WPS |
Push-Button | 3, for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃~+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃~+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1.5A |
Power Consumption | <18W |
Net Weight | <0.4kg |
Panel lights and Introduction
Pilot Lamp | Status | Description |
WLAN | On | The WIFI interface is up. |
Blink | The WIFI interface is sending or/and receiving data (ACT). | |
Off | The WIFI interface is down. | |
WPS | Blink | The WIFI interface is securely establishing a connection. |
Off | The WIFI interface does not establish a secure connection. | |
INTERNET | On | The light is on when the device business configuration is normal. |
Off | The light does not light up when the device service configuration is blocked. | |
PWR | On | The device is powered up. |
Off | The device is powered down. | |
LOS | Blink | The device doses not receive optical signals or with low signals. |
Off | The device has received optical signal. | |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. | |
Off | The device registration is incorrect. | |
LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). | |
Off | Port (LANx) connection exception or not connected. | |
POTS | On | Telephone has registered to the SIP Server. |
Blink | Telephone has registered and data transmission (ACT). | |
Off | Telephone registration is incorrect. | |
USB1~USB2 | On | USB device communication detected |
Off | No USB device detected or communicating |
Application

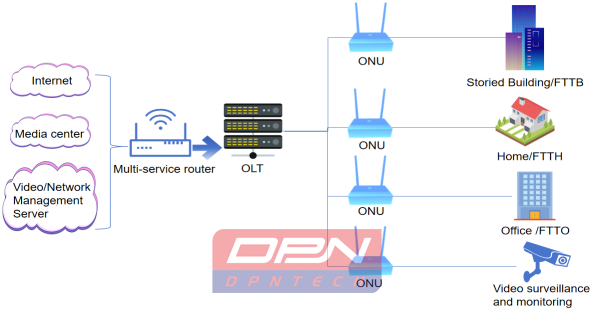

l Typical Solution：FTTO(Office)、FTTB(Building)、FTTH(Home)
l Typical Service：Broadband Internet access, IPV, VOD, video surveillance, etc.
