XPON 4GE AC POTS 2USB BN8502M
Overview
l 4GE+AC+POTS+2USB is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
l 4GE+AC+POTS+2USB is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
l 4GE+AC+POTS+2USB adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Feature
l Supports GPON and EPON auto detection.
l Support Rogue ONT detection.
l Support Route mode PPPoE/DHCP/Static IP and Bridge mixed mode.
l Support NAT, Firewall function.
l Support Internet, IPTV and VoIP services automatically bound to ONT ports.
l Support Virtual server, DMZ, and DDNS, UPnP.
l Support Filtering based on MAC/IP/URL.
l Support SIP protocol for VoIP Service.
l Support 802.11 b/g/n, 802.11ac WIFI(2x2 MIMO) function and Multiple SSID.
l Support Flow & Storm Control , Loop Detection and Port Forwarding.
l Support IPv4/IPv6 dual stack and DS-Lite.
l Support IGMP transparent/snooping/proxy.
l Support TR069 Remote Configuration and maintenance.
l Integrated OAM remote configuration and maintenance function.
l Compatible with popular OLT (HW, ZTE, FiberHome,VOSL...),supports OAM/OMCI management.
Chip Configuration Table | |||||||||
Chip brand | Main Chip | RAM | ROM | WIFI | VoIP | CATV | USB | LAN | BOSA DIRVER |
MTK | EN7526GT | 512MB | 256MByte/ 2048Mbit | AC 1200Mbps: MT7603E | 1POTs | / | 2.0 | 4GE | 1.25G SEMTECH GN25L98-QFN-TR |
Specification
Technical Item | Details |
PON interface | 1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-31dBm Transmitting optical power: 0.5~+5dBm Transmission distance: 20KM |

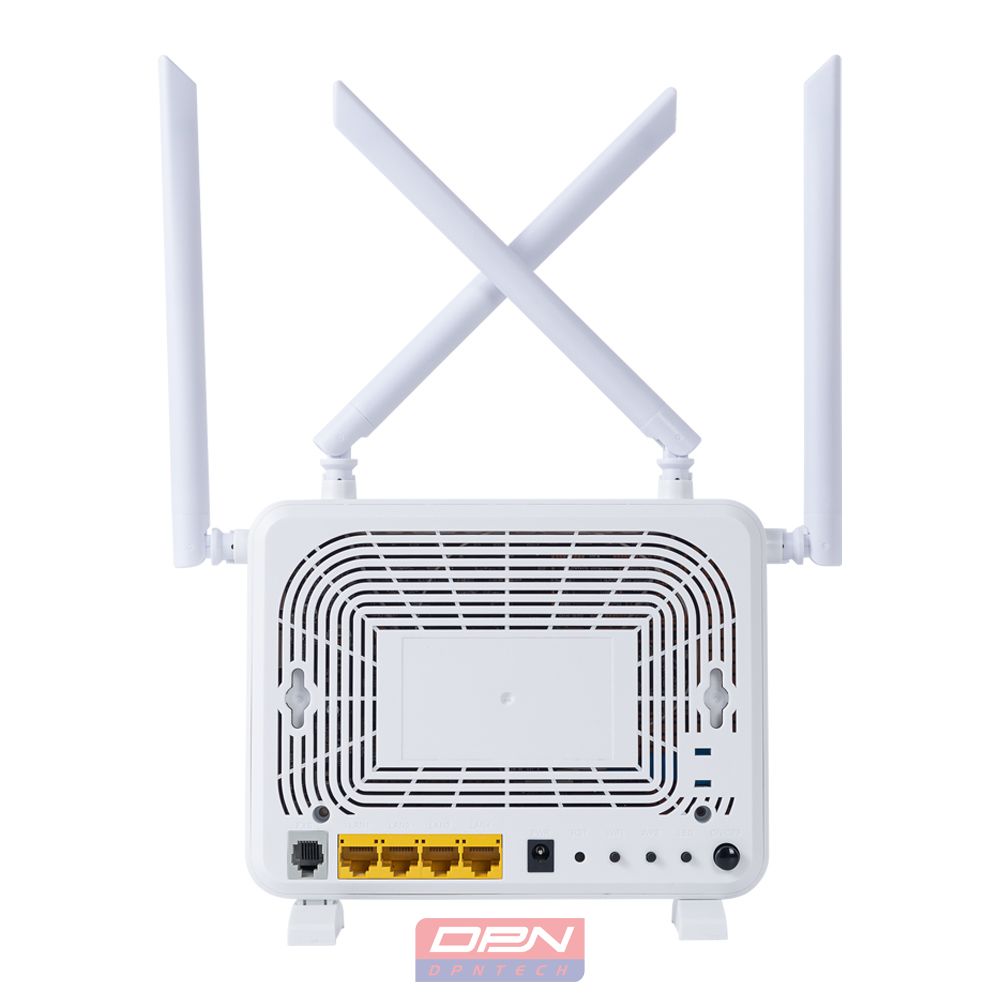

LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
USB Interface | Stamdard USB2.0 |
WLAN Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 5dBi external antenna, rate up to 866Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
POTS Port | RJ11 Max 1km distance Balanced Ring, 50V RMS |

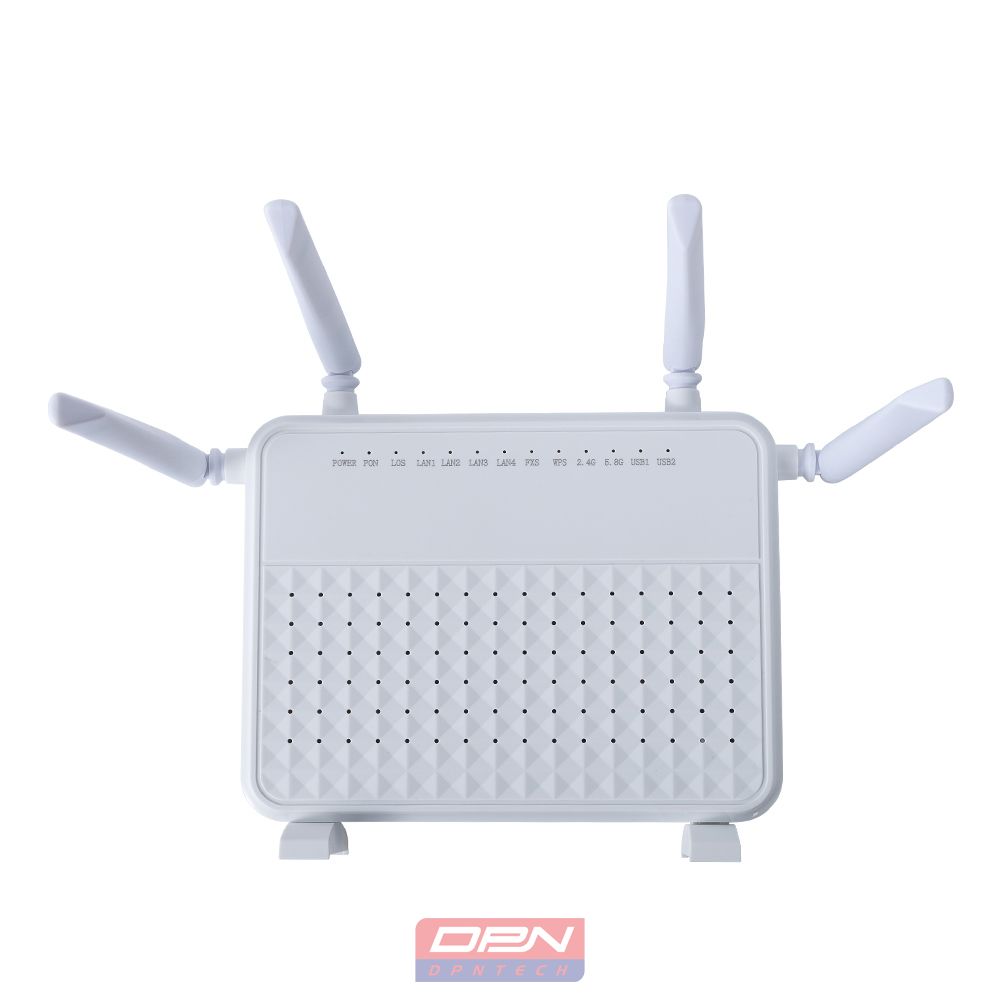

LED | 13 LEDs to indicate the status of POWER, PON, LOS, LAN1~LAN4, FXS, WPS, 2.4G, 5.8G, USB1, USB2 |
Push-Button | 5 button for Function of Power on/off, Reset,WLAN, WPS,Light |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1.5A |
Power Consumption | <6W |
Net Weight | <0.3kg |
